Description

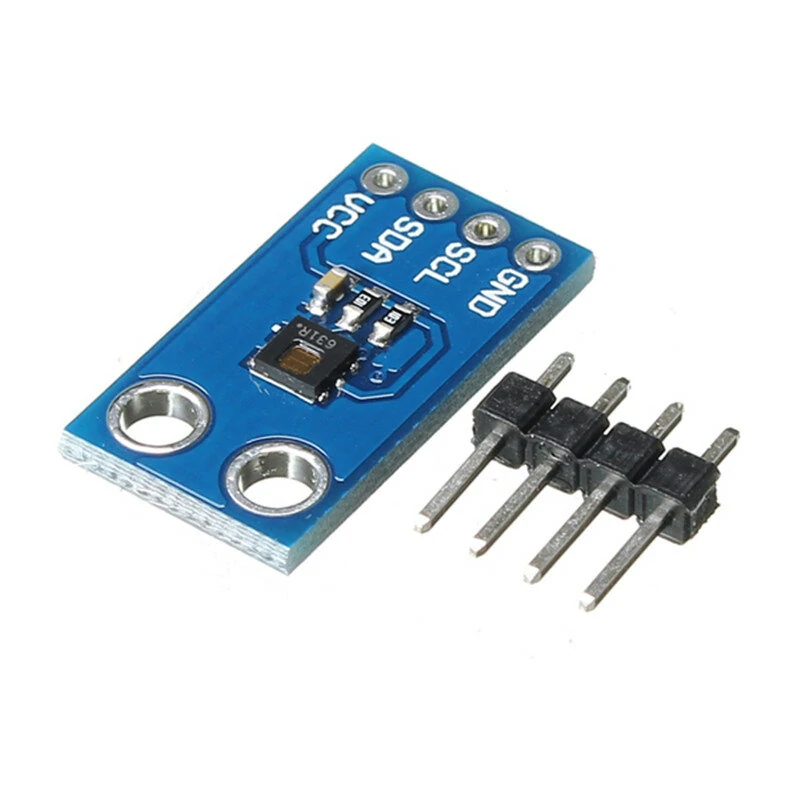

Description The HDC1080 is a digital humidity sensor with integrated temperature sensor that provides excellent measurement accuracy at very low power The HDC1080 operates over a wide supply range and is a low cost low power alternative to competitive solution in a wide range of common application The humidity and temperature sensors are factory calibrated Feature Relative Humidity Accuracy ±2 typical Temperature Accuracy ±0 2°C typical Excellent Stability at High Humidity14 Bit Measurement Resolution100 nA Sleep Mode CurrentAverage Supply Current 710 nA 1sps 11 bit RH Measurement1 3 µA 1sps 11 bit RH and Temperature MeasurementSupply Voltage 2 7 V to 5 5 VSmall 3 mm 3 mm Device FootprintI2C InterfaceApplications HVACSmart Thermostats and Room MonitorsWhite GoodsPrintersHandheld MetersMedical DevicesWireless Sensor TIDA 00374 00484 00524 Diagram Package included 5 x Temperature And Humidity Sensor Module
