Description

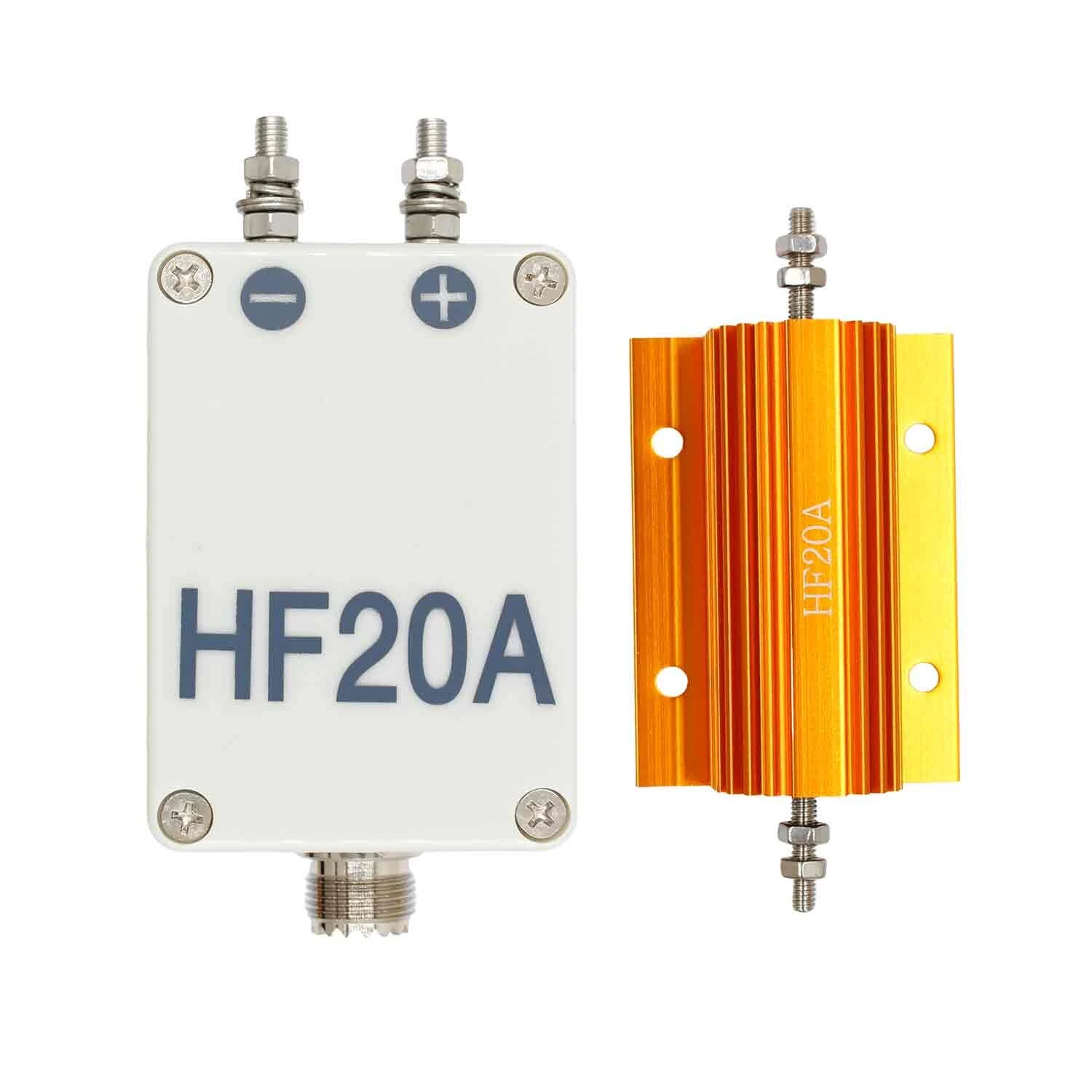

Specifications Rated Power 100WPeak Power 1000WAverage Power 50WFrequency Range 0 5 30 MHzMax SWR 2 0Vibrator Length 20mVibrator Material Multi core copper wire 1mm 1 5mm Recomended Installation Height 0 5m 6mIntroduction HF20A is a multi purpose short wave full length single line traveling wave antenna with high radiation efficiency and convenient installation It can be used for personal portable stations and temporary base stations in the field used to compensate for the presence of NVIS blind spots in general antennas When the cable is erected the 25W 50W portable platform can be used for 0 800km and the 125W vehicle can be used for 0 1500km When the flat pull is erected the directional communication distance is further Features Operates efficiently across 1 5 30 MHz frequency range without tuning Compatible with varied installation shapes inverted V triangle or horizontal Easy setup anywhere rooftops balconies windows or outdoor locations Compact and concealed design ideal for urban or space constrained environments Package Included 1 x HF20A Balun White Box 1 x HF20A Component Golden Piece 1 x 20m Vibrator Wire2 x 1 5m Connection WireActual installation prompt 1 The roof is fixed for a long time It is not necessary to use the ground anchor when installing Connect the two tail ends of the antenna directly with one wire to connect the two tail ends or directly connect the two tail ends directly SWR Ideal simple and practical
