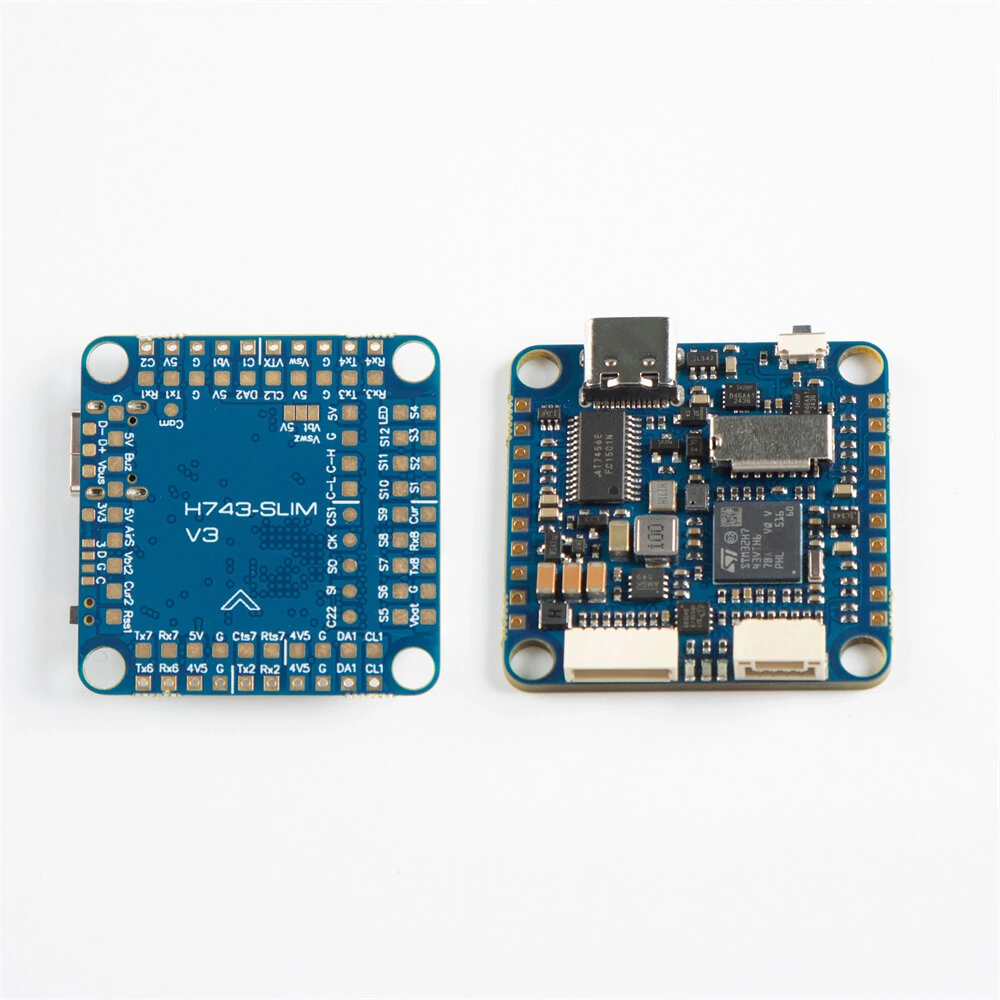

30.5×30.5mm H743 SLIM V3 2-8S Flight Controller ICM42688P with 5V BEC Output for RC FPV Racing Drone

Description

Feature Newest H743 SLIM V3 2 8S Flight Controller For RC FPV Drone H743 BetaFlight Slim Compact High Performance 1 Compact Design The slim and compact design of the H743 SLIM V3 makes it easy to install and handle enhancing your flying experience 2 High Performance Experience superior flight with the H743 SLIM V3 2 8S Flight Controller designed for optimal performance in RC FPV drones 3 Easy Assembly The H743 SLIM V3 comes unassembled allowing for easy customization and personalization to suit your needs 4 Durabl Material Crafted from composite material this flight controller ensures durability and longevity standing up to rigorous use Specifications Model H743 SLIM V3MCU STM32H743VIH6 480MHz 1MB RAM 2MB FlashICM 42688PBaro Infineon DPS368 I2C2 OSD AT7456E SPI2 Blackbox MicroSD card socket SDIO 7 Uarts 1 2 3 4 6 7 8 with built in inversion13 PWM outputs including LED pad 2 I2C1 CAN6 ADC VBAT Current RSSI Analog AirSpeed Vbat2 Cur2 3 LEDs for FC STATUS Blue Red and 3 3V indicator Red 1x SPI3 breakouUSB Type C USB2 0 1x JST SH1 0 8pin connector Vbat G Curr Rx8 S1 S2 S3 S4 1x JST GH1 25 4pin connector 5V CAN H CAN L G Dual Camera Inputs switch5V Vbat filtered power ON OFF switchDJI FPV OSD is supported by any spare UARTPower Vbat Input 6 36V 2 8S LiPo BEC 5V 2A cont Max 3A LDO 3 3V Max 200mANo Current Sensor built inADC Vbat2 pad supports Max 69V voltage divider 1K 20K Static power 200mA 5V with Betaflight 150mA 5V with ArduPilotF
