Description

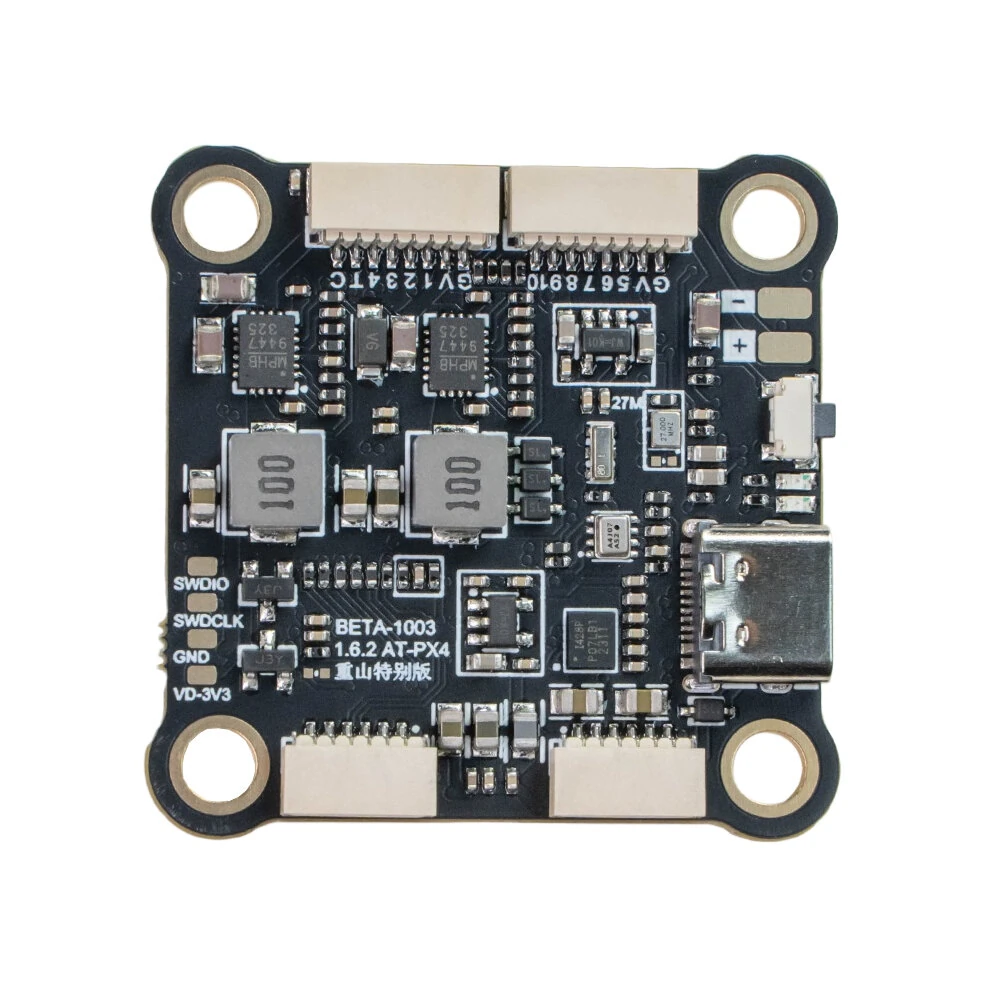

Feature Support X8 mode with two SH1 08P interfaces support X8 direct plug Support analog image transmission for DJI HD image transmission Avatar HD image transmission with HD image transmission direct plug interface Support SBUS input signal Pbus Wbus lbus elrs CRSF TBS do not support PWM signal and PPM signal input All 5 uart interfaces are led out on the interface and 5 uart serial devices can be connected including GPS elrs optical flow image transmission parameter adjustment camera parameter adjustment mavlink telemetry 4G image transmission Lead out one l2C support external magnetic compass 5 LED interfaces support RGB LED support four arm lights so that the aircraft routing is clear and organized Specification Brand GreatMountainMCU AT32F435 VMT7OSD AT7456EFLASH W25NO1GBlackBox W25Q128JVPIQBarometer DPS310Gyroscope 42688 PBEC 9V 4A 5V 4A Dual BECBec 3 3V 0 6ABec 5V 3 5ABec 9V 3 5AInput 3 6S 10 26 1V TVS Onboard 28V TVSFre 288MHZ Uart 5 10 set Mounting Hole 30 5X30 5mmMaterial PCBWeight 7 10Default port UART1 Receiver UART3 DJI HD Transmission Package Included 1 x AT32 F435VMT7 Flight Controller
