Description

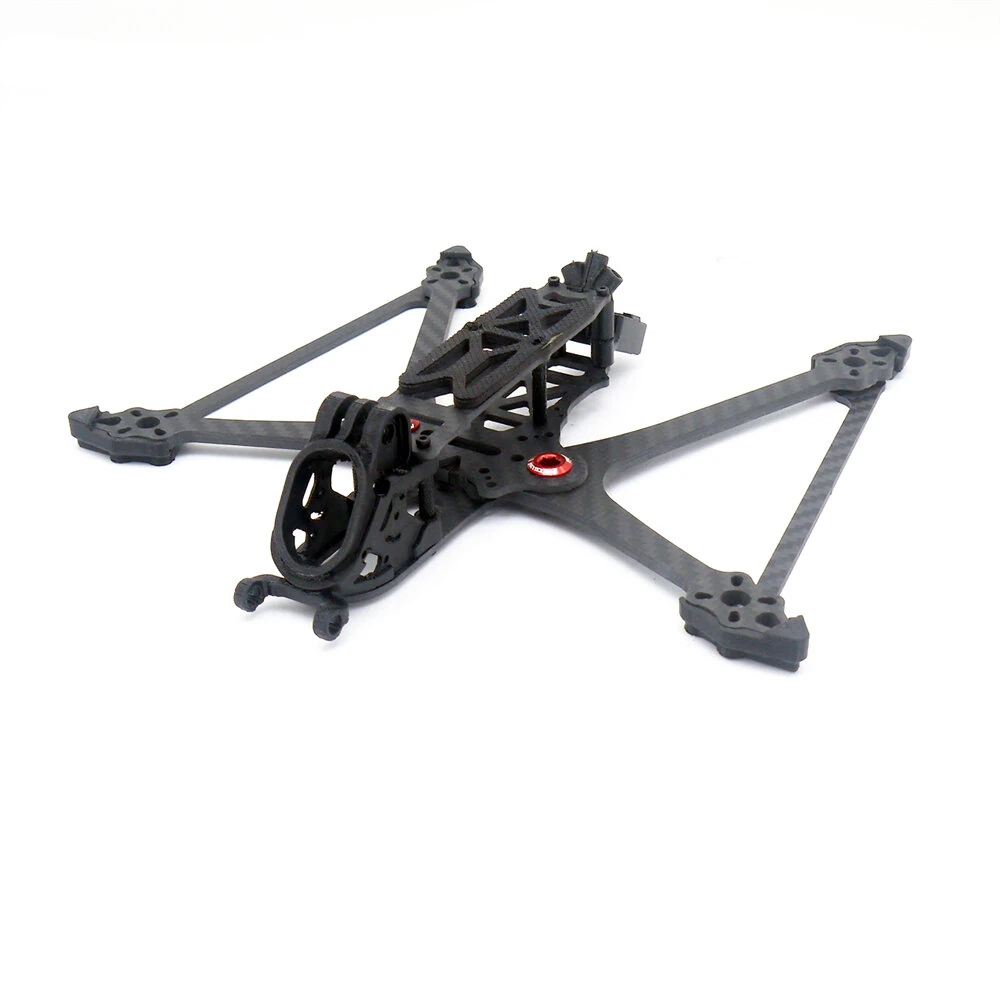

Specification Model Rex210Item Name Frame Kit Wheelbase 210mmWeight Approx 85G including printed parts Thickness Bottom Plate 2 0mm Upper Plate 2 0mm Middle Plate 2 0mm Reinforcing Rod 2 0mm Machine Arm 4 0mmPropeller 5 0 inch propellerFlight Controller Hole Spacing 20 20mm M3 25 5 25 5mm M2 upright not diamond shaped 30 5 30 5mm M3 need to remove the two middle aluminum columns Tail Image Transmission Hole Spacing 20 20mm M2 25 5 25 5mm M2 Camera Installation Width 20mm 19mmMotor Installation Hole 12 12mm M2 16 16mm M3 Printed Material 3D printed tpu materialPrinted Color Black TPUInternal Height Approx 19mmPrinted Parts List 4 motor protection seats 1 head cover 1 antenna seat supports single antenna dual antenna 1 GPS seatRecommend Parts NOT Included FCESC 20x20mm SpeedyBee F405 Mini StackBrushless Motor iFlight XING2 2306 1755KV 6S Brushless MotorPropeller Gemfan 51366 MCK V3 5 Inch Tri blade PC Props PropellerVTXCamera DJI O4 Pro DJI O3 VISTA 19mm20mmGPS BZ181 GPSPackage Included 1 x Rex210 Frame Kit
